DOOR SYSTEMS & DESCRIPTIONS

Manual Revolving Doors - Full Line Brochure
- TQM

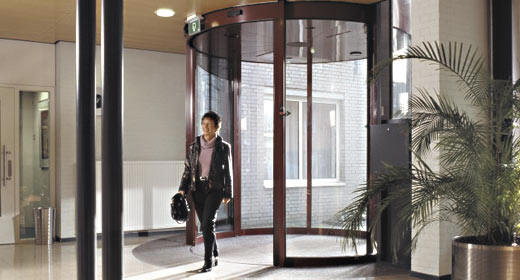

The TQM rotating door operates on the principle of “always open, always closed.” This means that the door is closed to drafts, unwanted outside air, noise and dirt, but users can pass through easily and efficiently without impairing the door’s energy-saving benefits.

The TQM rotating door is a high quality manual rotating door with eye-catching features that include slimline profiles, concealed connections and large panes of glass, both in the door wings and the curved sidewalls.

The TQM rotating door is available in a 3-wing or a 4-wing configuration. The 3-wing model provides larger compartment spaces. The 4-wing model provides a wider throat opening, allowing for a more efficient two-way traffic flow and a balanced appearance.

In short

  • Flexible design
  • Being produced by Boon Edam since 1903
  • Most sold rotating door in the world
  • Available in many dimensions and surface finishes
  • Most affordable rotating door

TQM Spec Sheets
(Z)  TQM Architectural Drawing (dwg)
(W) TQM Specification
(P)  TQM (3 wing) Cut Sheet
(P)  TQM (4 wing) Cut Sheet
(P)  Manual Revolving Doors brochure

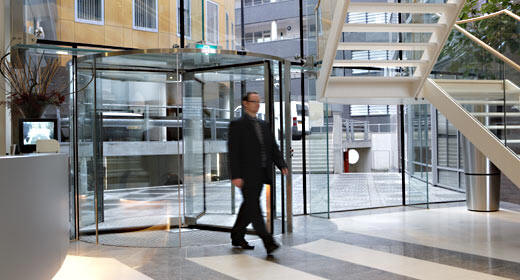

- Crystal TQ



The transparent revolving door.

The Boon Edam Crystal TQ is made almost entirely of glass—the door wings, the sidewalls and even the ceiling. The Crystal TQ utilizes a combination of tempered and laminated safety glass to minimize, or in some places eliminate, the traditional metal framing of the door.

The doorset, which is available in a 3-wing or 4-wing configuration, is made from 1/2” tempered glass connected to the center shaft with specially made stainless steel clamps. The tempered laminated glass ceiling is fixed to the curved laminated glass side walls with small, unobtrusive clamps.

The dazzling Crystal TQ is a virtually transparent revolving door that is perfect for contemporary glass facades, yet still blends beautifully with classic architectural styles. Available in a wide range of sizes, the Boon Edam Crystal TQ brings together quality in design and engineering.

As with all Boon Edam doors, the Crystal TQ is manufactured to the highest standards and supported by our network of technicians and distributors throughout North America.

In short

  • Timeless, quality glass construction
  • Maximum transparency from minimalist design
  • Diameters of 6’6” to 8’0” provide maximum size and location flexibility
  • Ideal for both contemporary and traditional building designs

Crystal TQM Spec Sheets
(Z)  Architectural Drawing (dwg)

(D)  Specification
(P)  Cut Sheet (3 wing)
(P)  Cut Sheet (4 wing)
(P)  Manual Revolving Doors brochure


Automatic Revolving Doors - Full Line Brochure
- TQA

The all round revolving door.

The TQA operates on the principle of “always open, always closed.” This means that the door is closed to drafts, unwanted outside air, noise and dirt, but users can pass through easily and efficiently without impairing the door’s energy-saving benefits.

The TQA is a fully Automatic Revolving Door. At rest, this 3-wing door waits for approaching traffic. Microwave motion detectors mounted on the canopy, above both throat openings, detect pedestrians and signal the motor to rotate the doorset.

At 10’0” or 12’0” in diameter, the 3-wing TQA provides a comfortable compartment size for most pedestrian traffic. At 12’0” in diameter, the TQA can also accommodate wheelchairs.

In short

  • Flexible design
  • Produced by Boon Edam since 1903
  • Most sold revolving door in the world
  • Available in many dimensions and surface finishes
  • Most affordable revolving door

TQA Spec Sheet
(Z)  TQA Architectural Drawing (dwg)

(W)  TQA Specification
(P)  TQA Cut Sheet
(P)  Automatic Revolving Doors brochure

- Tournex

The spacious revolving door.

With the Tournex you can welcome a large number of visitors into your building. Day in and day out, this quiet, reliable and spacious revolving door offers extremely safe and comfortable access.

The Tournex is a fully Automatic Revolving Door available in both 3-wing and 4-wing configurations. Two standard models, the Tournex Showcase and Tournex Star, are available in sizes ranging from 12’0” to 20’0” in diameter. Although both models offer a glass center core, the Showcase model offers a functional display case. The Tournex provides a comfortable compartment size for most applications and traffic requirements.

Operating on the principle of “always open, always closed’, this automatic revolving door is closed to drafts, unwanted outside air, noise and dirt, but visitors can pass through easily and efficiently without impairing the door’s energy-saving benefits.

The Tournex is a smart choice for most heavy traffic flow applications where an energy-saving revolving door is required.

In short

  • Proven successful (oldest type of high capacity door)
  • Large Showcase in the center can be used for advertising purposes
  • Perfect door for a wide range of applications
  • By using special profiles the Tournex can be perfectly customized to your building

Tourex Spec Sheets
(Z)  Architectural Drawing (dwg)

(W)  Specification
(P)  Cut Sheet (3 wing)
(P)  Cut Sheet (4 wing)
(P)  Cut Sheet (concave, 3 wing)
(P)  Cut Sheet (concave, 4 wing)
(P)  Automatic Revolving Doors brochure

- Duotour



The most versatile revolving door.

Boon Edam’s Duotour is a 2-wing automatic revolving door designed for smooth operation in heavy traffic flow applications, as well as tasteful integration with a building’s existing architectural style.

The Duotour is available in two models, the Duotour AC and the Duotour AS. The Duotour AS has an integrated automatic sliding doors so you can choose between using the revolving door or sliding doors, depending on the weather and the traffic requirements.

With large compartments, the Duotour can accommodate a large number of people entering and exiting. Day in and day out, this quiet, reliable and spacious revolving door offers extremely safe and comfortable access. The Duotour is a fully Automatic Revolving Door that operates on demand.

In short

  • First revolving door available with integrated sliding doors and full automatic panic escape!!
  • Ideally suited for areas of high traffic flow such as Hotels, Airports, Hospitals, Retail Developments, Corporate Headquarters and Leisure Centers.
  • Large segment size easily accommodates shopping/luggage trolleys, wheelchairs and pushchairs.
  • Unique design provides the maximum possible clear opening for emergency escape or the passage of large items such as cleaning equipment or even cars.

Duotour Spec Sheets
(Z)  Architectural Drawing (dwg)

(W)  Specification
(P)  Cut Sheet
(P)  Cut Sheet (sliders)
(P)  Automatic Revolving Doors brochure

- Twintour



Unique high capacity revolving door.

Boon Edam’s Twintour defies simple description. More than a revolving door, the Twintour is a revolving door concept. A unique concept, for the Twintour consists of two (or three) small revolving doors which are connected with one another via an existing or specially constructed portal.

The door set of the Twintour is a two-wing door set. Even so the Twintour is still draught proof. In fact, the Twintour is one of the most economical doors of the entire range of revolving doors in terms of the energy it consumes and the energy it saves.

High capacity entrances

The Twintour is able to allow access to an unprecedented number of visitors. The two-wing door set means that the door can be traversed in a straight line. This system is especially user friendly - particularly for people with shopping trolleys, buggies or other large objects. Continuous passage capacity is assured since one of the door sets can continue to revolve if ever the other door set is blocked.

Variety of configurations

The variety of configurations enables us to offer you a high capacity entrance solution suitable for almost any building. You will often find our Twintour in airports, railway stations, hospitals, large office complexes, supermarkets and shopping centers.

In short

  • Highest capacity
  • Highest energy-savings
  • Especially user-friendly for persons with trolleys or wheelchairs
  • Most affordable high capacity revolving door

Twintour Spec Sheets
Architectural Drawing (dwg)

Specification
Cut Sheet
Automatic Revolving Doors brochure


Special Purpose Doors
- Circleslide



The elegant curved sliding door.

Our Circleslide is a curved automatic sliding door that gives a sensation of space to those entering it. Incorporating self-learning technology, our Circleslide offers extremely smooth and quiet movement. The door provides enough space for people pushing prams or trolleys, carrying luggage and people in wheelchairs. The soft arc appearance and transparent design make the Circleslide an impressive and stylish entrance. The Circleslide can be perfectly integrated into any type of architecture.

Universal entrance solution

A variety of configurations enable us to offer you a suitable entrance solution for almost any building. The Circleslide is also often used in renovation projects to replace regular sliding doors. Curved sliding doors offer wider entrance openings than flat sliding doors. You will often find our Circleslide in offices, hotels and restaurants, shopping centers and supermarkets, airports and many types of public buildings.

In short

  • Maximum space inside the door
  • Battery back-up provides cover for power failure
  • Programmable automatic operation
  • Available in many dimensions and surface finishes

Circleslide Spec Sheets
(Z)  Architectural Drawing (dwg)
(W)  Specification
(P)  Cut Sheet

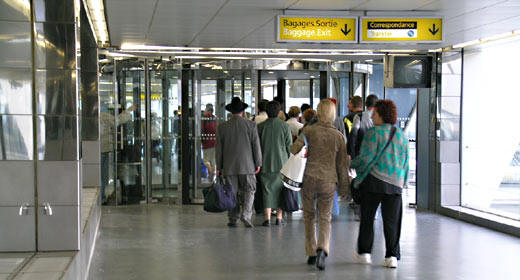

- Flowslide



The perfect solution to separate passenger flows.

As you would expect from the revolving door market leader we have developed a revolutionary door called the Flowslide, a high-tech combination of a revolving door and curved sliding panels. The Flowslide offers a complete physical separation between two crossing passenger flows on a single floor.

Construction

This solution proves that it is possible to reconcile passenger comfort with improved security measures. With the Flowslide, we offer the possibility of a single storey terminal construction or using the existing terminal infrastructure without renovating your building to effect the separation of passenger flow.

Passenger terminals

The Flowslide can be used in all kind of terminals where it is necessary to separate two flows of people, e.g. separation of arriving and departing passengers in airports, seaport and railway terminals.

Working principle

The Flowslide consists of a rigid central door wing and three curved sliding panels, which revolve within the fixed bent wall. The sliding panels can alternately being spread and folded to open or close the entries or exits of the door. The combination of sliding panels and door wings are software controlled and programmed in such a way that passengers only can walk from point A <-> B or from point X <->Y.

Flowslide Spec Sheets
(No links).

SECURITY BARRIERS & DESCRIPTIONS

Security Doors & Portals

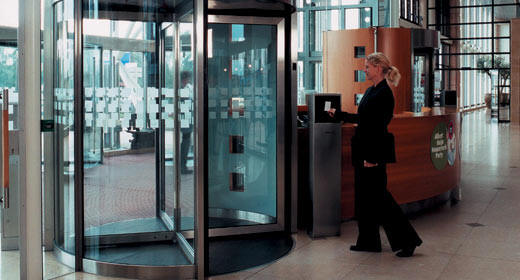

- Tourlock 4-Wing



Our Tourlock 180 + 90 4-wing automatic revolving security doors offer many possible access control options, including:

  • Security In / Free Out
  • Security In / Security Out
  • Free In Day / Security In Night

Regardless of the security settings you choose, you can rest assured that proper authorization will be required to pass through the Tourlock 180 + 90. When combined with an external card reader or biometric device of your choice, the Tourlock 180 + 90 provides a secured access point and does so at a substantially lower cost than traditional manned stations, which introduce issues such as personal bias, low attention span and absenteeism.

Tourlock 4-wing Spec Sheets
(P)  Product Data Sheet

(P)  StereoVision leaflet
(Z)  Architectural Drawing (dwg)
(D)  Specification
(P)  Cut Sheet

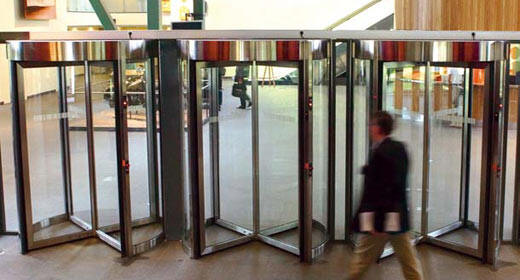

- Tourlock 3-Wing



For the budget-conscious, our Tourlock 120A revolving security doors provide a high level of security while supporting an impressive throughput. Low maintenance, high security and cost effectiveness make this automatic revolving door ideal for many applications. The Tourlock 120A is compatible with your choice of access control system. Overhead infrared sensors make contact floor mats unnecessary, enabling installation on a finished floor for quick and easy renovation projects.

Tourlock 3-wing Spec Sheets
(Z)  Architectural Drawing (dwg)

(D)  Specification
(P)  Cut Sheet

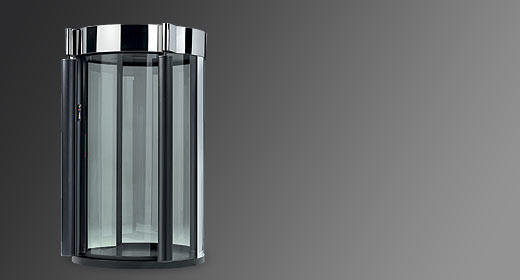

- Circlelock



The high security interlocking door.

If security at a secondary or remote entrance is a prime concern, then the Circlelock security portal can help put your mind at ease.

The Circlelock helps control access into and out of your facility, or selected area within your facility. Its unique design allows for authorized traffic only, one person at a time. The larger Circlelock can even accommodate a wheelchair. This avoids the security compromise which may occur in order to allow the disabled access to a secured area.

Regardless of the security settings you choose, you can rest assured that proper authorization will be required to pass through the Circlelock.

Circlelock Spec Sheets
(P)  Secure Entry Portals brochure

(P)  Product Data Sheet
(Z)  Architectural Drawing (dwg)
(W)  Specification
(P)  Cut Sheet
(P)  Circlelock with biometrics leaflet

- Stereovision



(No Links)

(No Products)

StereoVision Spec Sheets
(No Links)
(No Products)

- TAP 50



The half portal secure interlocking door system.

The TAP-50 Interlocking Door System is a fully programmable half cylinder portal which can be designed with bullet resistant glass and uni-directional or bi directional electrical controls.

Characteristics

  • Prevents piggybacking using a sophisticated ultrasound sensor to scan the cabin and deny access if two or more people are detected
  • Fully programmable half cylinder portal
  • Utilizes existing swing doors
  • Minimizes construction necessary to accommodate portal installation
  • Designed with either uni-directional or bi-directional electrical controls
  • TAP-50SD: Swing door included with unit & optional bullet resistant glass
  • Integrates with any type of access control system, including biometrics

Safety and Emergency Controls

  • The Interlocking Door System is equipped with an inside call button and intercom in the event that assistance is needed.
  • The remote control panel may be used by the installation site manager to open both doors for continuous entry and exit.
  • The portals can be connected to the building’s fire alarm system, opening both doors immediately to allow evacuation.
  • In the event of a power outage, the portal’s battery back-up system allows for two hours of continuous use. The portal also can be opened manually with a mechanical release lever that releases the door on the public side. On the secure side, a hand crank is provided to open the door.

TAP-50 Spec Sheets
(P)  Secure Entry Portals brochure

(P)  Product Data Sheet
(Z)  Architectural Drawing
(W)  Specification
(P)  Cut Sheet

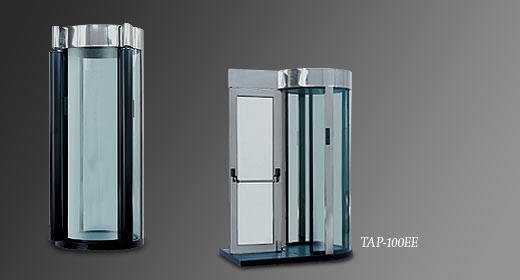

- TAP 100



Single Entry Interlocking Door System.

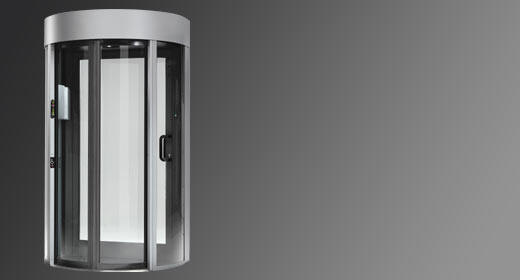

The TAP-100 Interlocking Door System is a fully programmable cylindrical portal which can be designed with metal detection, armored glass, and uni-directional or independent bi-directional electrical controls. The system can be integrated with any type of access control system.

Characteristics

  • Prevents piggybacking
  • Small 32-1/4” diameter cylindrical portal
  • Integrates with any access control system
  • Optional bullet resistant glass
  • Optional metal detection
  • TAP-100EE: Integrated with emergency exit to allow automatic opening of curved doors and swing door simultaneously

Safety and Emergency Controls

  • The Interlocking Door System is equipped with an inside call button and intercom in the event that assistance is needed.
  • The remote control panel may be used by the installation site manager to open both doors for continuous entry and exit.
  • The portals can be connected to the building’s fire alarm system, opening both doors immediately to allow evacuation.
  • In the event of a power outage, the portal’s battery back-up system allows for two hours of continuous use. The portal also can be opened manually with a mechanical release lever that releases the door on the public side. On the secure side, a hand crank is provided to open the door.

TAP-100 Spec Sheets
(P)  Secure Entry Portals brochure

(P)  Product Data Sheet
(Z)  Architectural Drawing
(W)  Specification
(P)  Cut Sheet

- TAP-200



Multipurpose Interlocking Door System.

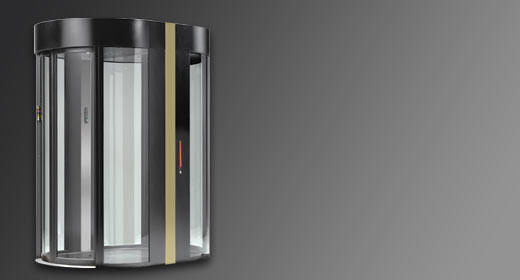

Boon Edam Inc. Multipurpose Interlocking Door System provides flexibility and state of the art technology to ensure the highest level of security with a larger portal size for ADA or other requirements. The TAP-200 Interlocking Door System is a fully programmable cylindrical portal which can be designed with metal detection, armored glass, and uni-directional or independent bi-directional electrical controls. The system can be integrated with any type of access control system.

Characteristics

  • Prevents piggybacking
  • Large 54-1/2” exterior diameter cylindrical portal
  • Wheelchair accessible
  • Integrates with any access control system
  • Optional bullet resistant glass
  • Optional metal detection

Safety and Emergency Controls

  • The Interlocking Door System is equipped with an inside call button and intercom in the event that assistance is needed.
  • The remote control panel may be used by the installation site manager to open both doors for continuous entry and exit.
  • The portals can be connected to the building’s fire alarm system, opening both doors immediately to allow evacuation.
  • In the event of a power outage, the portal’s battery back-up system allows for two hours of continuous use. The portal also can be opened manually with a mechanical release lever that releases the door on the public side. On the secure side, a hand crank is provided to open the door.

TAP-200 Spec Sheets
(P)  Secure Entry Portals brochure

(P)  Product Data Sheet
(Z)  Architectural Drawing
(W)  Specification
(P)  Cut Sheet

- TAP-250



Multipurpose/ADA Interlocking Door System.

Boon Edam Inc. Multipurpose / ADA Interlocking Door System provides flexibility and state of the art technology to ensure the highest level of security with a larger portal size for ADA or other requirements. The TAP-250 Interlocking Door System with extended cabin length is a fully programmable cylindrical portal. The system can be integrated with any type of access control system.

Characteristics

  • Prevents piggybacking
  • Extended 72” cabin length
  • Wheelchair accessible
  • Accommodates small cart traffic
  • Integrates with any access control system

Safety and Emergency Controls

  • The Interlocking Door System is equipped with an inside call button and intercom in the event that assistance is needed.
  • The remote control panel may be used by the installation site manager to open both doors for continuous entry and exit.
  • The portals can be connected to the building’s fire alarm system, opening both doors immediately to allow evacuation.
  • In the event of a power outage, the portal’s battery back-up system allows for two hours of continuous use. The portal also can be opened manually with a mechanical release lever that releases the door on the public side. On the secure side, a hand crank is provided to open the door.

TAP-250 Spec Sheets
(P)  Secure Entry Portals brochure

(P)  Product Data Sheet
(Z)  Architectural Drawing
(W)  Specification
(P)  Cut Sheet

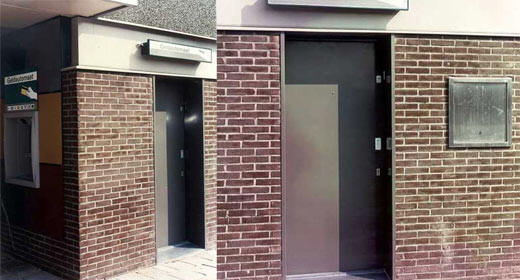

- Cashlock



Safe entrance for a single person.

The Cashlock is the worlds smallest security door for people. This mechanical door guarantees optimal security in buildings and interiors which are especially prone to breaking and entering, such as banks, computer rooms and laboratories.

Maximum security

The Cashlock has been designed in such a way that literally only one person can pass through at a time. At first sight it looks like any normal hinged door, but the neat finish and the impact resistant and scratchproof coating actually conceal a genuine bunker - and that over a surface area of scarcely one square metre! The Cashlock may either be installed inside the building or integrated in its facade.

Cashlock Spec Sheets
(P)  Product Data Sheet (EU)


Highwaist Turnstiles

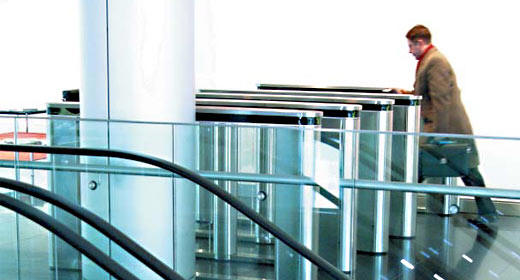

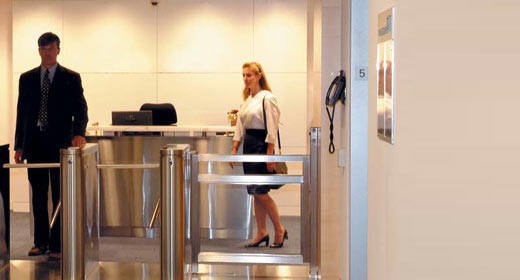

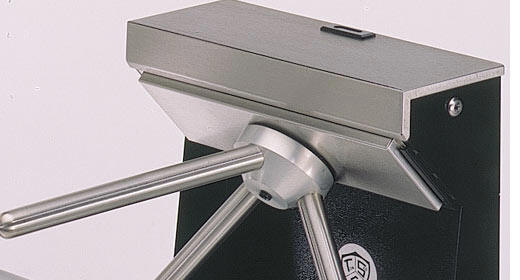

- TUT-50



The TUT-50 Series offers a simple but effective method of controlling passage. The turnstiles can be mechanically or electrically operated.

TUT-50 Spec Sheets
(P)  Waist High Turnstiles brochure

- TUT-60

The TUT-60 Series security turnstiles are suitable for high volume, abusive conditions. The turnstiles can be mechanically or electrically operated, and are designed to interface with any access control device.

TUT-60 Spec Sheets
(P)  Waist High Turnstiles brochure

- TUT-65

Ideal for applications involving ticketing or barcode scanning, the TUT-65 Series offers durability and appeal. The turnstiles are offered in mechanical, electrical or battery-powered portable designs.

TUT-65 Spec Sheets
(P)  Waist High Turnstiles brochure

- TUT-75



For applications requiring the highest level of durability and aesthetic appeal, the TST-75 Series offers the ideal solution. The turnstiles are available with straight or rounded cabinet ends and a variety of finishes to match any décor. A durable cabinet construction ensures long life and minimum maintenance.

TUT-75 Spec Sheets
(P)  Waist High Turnstiles brochure

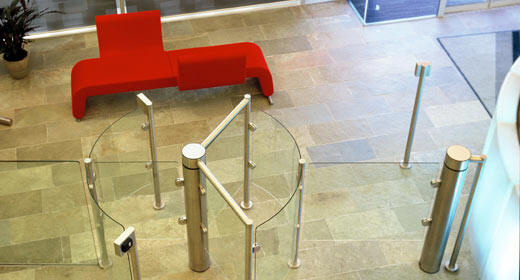

- Transpalock 900



Transparent revolving security barrier.

The Transpalock 900 turnstile simply and effectively controls passage without creating an obtrusive barrier. The stylish design can match many surroundings to provide indoor security access control.

Characteristics

  • Offers a simple yet effective method of controlling internal passage without creating an obtrusive barrier
  • Constructed mainly from tempered glass and stainless steel to match many surroundings
  • Three-wing turnstile combines with either a tubular stainless steel frame or a curved toughened glass panel to provide a secure enclosure
  • Frameless toughened glass door wings are mounted on a central column which houses the drive, control and locking mechanisms
  • Allows fully automatic bi-directional access control; accommodates traffic of one person at a time
  • Stainless steel tube frame prevents unauthorized persons from walking in from the opposite direction

Transpalock 900 Spec Sheets
(P)  Product data sheet

(P)  Cut Sheet
(D)  Specification


Optical Turnstiles
- Speedlane 2048



The Speedlane 2048 optical turnstiles are the ideal choice for areas requiring discrete security and maximum traffic flow. The barrier-free design and fully integrated sensors allow authorized individuals to pass through quickly and efficiently.

  • LCD user interface provides clear instructions to pedestrians
  • Quarter-inch tailgate detection and advanced algorithms detect intruders and ensure each person presents a valid ID badge before entering
  • Twelve sensors in a matrix formation offer detection beams at three heights prevent crawl attempts
  • False alarm rate is negligible; Detects and disregards common items such as suitcases, dollies, backpacks and umbrellas; Works well with wheelchairs and guide dogs
  • Suitable for entrances where an open look is desirable; Offers a perfect balance of security and image
  • Each direction (incoming & outgoing) can be set for card access or free passage independently; Control operation and admit guests from the access control system or from a PC (with optional TCSA control software); Set programming options with DIP switches or software
  • Effortlessly handles 35 people per minute
  • Meets ADA at a 32" lane width
  • Steel frames and strong housings offer decades of blemish-free operation
  • Tiny footprint for easy placement; Can be arranged in a straight line, in an arc, or in an angled, offset row
  • Integrates with any access control system and card reader
  • Designed for 100% uptime; Sensor beams are tolerant of misalignment

Speedlane 2048 Spec Sheets
(P)  Turnstiles catalog
(P)  Speedlanes brochure
(P)  Product Data Sheet
(P)  Cut Sheet
(Z)  Architectural Drawing
(W)
Specification

- Speedlane 900



The Speedlane 900 Series optical barrier lanes are designed to provide a high level of security for supervised access control applications while maintaining a high traffic flow. The stylish design and variety of finish options makes this optical barrier lane versatile and unique.

Speedlane 900 Spec Sheets
(P)  Turnstiles catalog
(P)  Speedlanes brochure
(P)  Product Data Sheet
(P)  Cut Sheet (wide, single unit)
(P)  Cut Sheet (narrow, single unit)
(P)  Cut Sheet (narrow, multiple units)
(W)
Specification

- Swinglane 900



The pedestrian security lane with swing doors

The Swinglane 900 is an optical turnstile with a twist: it combines the advantages of a swinging gate and long detection lane to create a high capacity security barrier. The benefits of this security portal are increased user comfort and tailgating prevention.

Characteristics

  • Available as a single- or multiple-lane configuration
  • Compatible with all access control systems, including card readers and biometric devices
  • Creates a visual but inviting secured entrance to your building
  • Available with one or two fast-opening glass swing doors to create a standard passage or a wider handicap-accessible passage
  • The units allow bi-directional traffic in one direction at a time; user comfort and safety is ensured with fast swinging glass doors that open in two directions

Swinglane 900 Spec Sheets
(P)  Turnstiles catalog
(P)  Speedlanes brochure
(P)  Product Data Sheet
(P)  Cut Sheet
(P)  Cut Sheet (Wide Lane)
(W)  Specification

- -Speedlane 996



The Speedlane 996 Series security turnstiles offer the highest level of tailgating detection available in optical technology. The unique high density-beam matrix can reliably and accurately detect tailgating within ¼", including side-by-side traffic.

High Density-Beam Detection Matrix

The high density-beam matrix of Speedlane 996 security turnstiles offer ¼" tailgate detection and a negligible false alarm rate. The matrix collects data about what is passing between the cabinets, processes the information and makes active decisions about whether or not to generate an alarm. The matrix detection system offers superior tailgate detection because of the unique combination of perpendicular and horizontal beams. Because so much data is available, our Speedlane 996 security turnstiles can discern a bag or suitcase from a second person and ignore swinging arms and umbrellas. In short, detection matrix provides better security and a much lower false alarm rate than other optical security turnstiles.

Speedlane 996 Series Spec Sheets
(P)  Turnstiles catalog
(P)  Speedlanes brochure

- Speedlane 996-HB
  • Optical security turnstiles with horizontal sliding glass panels
  • The units allow bi-directional traffic in one direction at a time: each direction can be independently controlled
  • Compatible with any access control system: accommodates a wide variety of operating modes for maximum flexibility
  • Standard lane widths are 22" or 36" for ADA compliance
  • Standard cover is 1" thick Corian solid surface; optional stainless steel, marble or granite covers are available

Speedlane 996-HB Spec Sheets
(P)  Product Data Sheet
(P)  Cut Sheet
(Z)  Architectural Drawing
(W)  Specification


Full Height Turnstiles
- THT-100



Fabricated in a variety of durable materials, the THT-100 Series turnstile gate provides dependable access control even in unsupervised locations.

THT-100 Turnstile Gate Series Spec Sheets
(P)  Full Height Turnstiles

THT-100 (3): Steel or Powder Coat

  • Three-wing turnstile gate provides access control to unsupervised installations
  • Rugged construction ensures trouble-free performance and durability
  • Heavy duty mechanism can be mechanical with optional self-centering or electrical with standard self-centering: a second set of electrical controls can be added for exit
  • Available in any combination of fail-lock or fail-safe on electric versions: all fail-lock applications automatically include a mechanical key release to allow manual override in an emergency
  • Fabricated from hot-dipped galvanized steel (THT-100C, EC) or powder coated steel (THT-100CP, ECP)
  • Three rotor sections for 120-degrees of passage space allow for greater comfort in use
  • Bottom thrust bearing is dust and moisture proof
  • Open construction shield minimizes claustrophobic effect and increases visual security
  • Low voltage 24 VDC operating system requires normally open, momentary, dry contact to release turnstile gate

THT-100 (3): Steel or Powder Coat Spec Sheets
(P)  Product Data sheet

(P)  Cut Sheet
(Z)  Architectural Drawing
(D)  Specification
(P)  Wiring Diagram (THT-100EC and ECP only)
(P)  Installation instructions


THT-100 (3): Aluminum or Stainless Steel

  • Three-wing turnstile gate provides access control to unsupervised installations
  • Rugged construction ensures trouble-free performance and durability
  • Heavy duty mechanism can be mechanical with optional self-centering or electrical with standard self-centering: a second set of electrical controls can be added for exit
  • Available in any combination of fail-lock or fail-safe on electric versions: all fail-lock applications automatically include a mechanical key release to allow manual override in an emergency
  • Fabricated from anodized aluminum with stainless steel arms (THT-100A, EA) or complete stainless steel (THT-100S, ES)
  • Three rotor sections for 120-degrees of passage space allow greater comfort in use
  • Bottom thrust bearing is dust and moisture proof
  • Open construction shield minimizes claustrophobic effect and increases visual security
  • Low voltage 24 VDC operating system requires normally open, momentary, dry contact to release turnstile gate

THT-100 (3): Aluminum or Stainless Steel Spec Sheets
(P)  Product Data sheet

(P)  Cut Sheet
(Z)  Architectural Drawing
(D)  Specification
(P)  Wiring Diagram (THT-100ES and EA only)
(P)  Installation instructions


THT-100HG (Handicapped Turnstile Gate)

  • Three-wing turnstile gate provides handicap access to installations where a gate is not preferred
  • Rugged construction ensures trouble-free performance and durability
  • Manufactured from galvanized carbon steel (THT-100HGC, HGEC), powder coated carbon steel (THT-100HGCP, HGECP) or complete stainless steel (THT-100HGS, HGES)
  • Mechanism can be mechanically or electrically operated
  • Any combination of fail-lock or fail-safe is available on electric versions: all fail-lock applications automatically include a mechanical key release to allow manual override in an emergency
  • Three rotor sections 120-degrees apart with 47" arms for handicap access
  • 24 VDC electrical operating system requires a momentary normally open dry contact to release the turnstile gate
  • Hydraulic cushioning unit and self-centering mechanism are included with all electrical units

THT-100HG (Handicapped Turnstile Gate) Spec Sheets
(P)  Cut Sheet

(Z)  Architectural Drawing
(D)  THT-100HG Specification
(P)  Wiring Diagram (THT-100HGEC, HGECP and HGES only)
(P)  Installation instructions


THT-100T (Tandem): Steel or Powder Coat

  • Combines the functions of two single rotor turnstiles into one turnstile gate
  • Intermeshing of left and right-hand rotors allows reduction in overall width from 10 feet (two single rotor turnstile gates) to 8 feet with a space saving double gate, with no reduction of passage space; 7-foot version also is available for applications with minimal entry space
  • Construction of all double gates matches single rotor turnstile gates
  • Manufactured from galvanized carbon steel (THT-100TC) or powder coated carbon steel (THT-100TCP)
  • Three rotor section turnstiles include fully welded middle-barrier to prevent unauthorized entry through midsection of turnstile gate
  • Double gate can have up to four control points, two entries and two exits
  • Each rotor can be supplied with electrical operation in one or two directions
  • Any combination of fail-lock or fail-safe is available on electric versions: all fail-lock applications automatically include a mechanical key release to allow manual override in an emergency

THT-100T (Tandem): Steel or Powder Coat Spec Sheets
(P)  Product Data sheet
(P)  Cut Sheet
(Z)  Architectural Drawing
(D)  Specification
(P)  Wiring Diagram
(P)  Installation instructions


THT-100T (Tandem): Aluminum or Stainless Steel

  • Combines the functions of two single rotor turnstiles into one turnstile gate
  • Intermeshing of left and right-hand rotors allows reduction in overall width from 10 feet (two single rotor turnstile gates) to 8 feet with a space saving double gate, with no reduction of passage space; 7-foot version also is available for applications with minimal entry space
  • Construction of all double gates matches single rotor turnstile gates
  • Fabricated from anodized aluminum with stainless steel arms (THT-100TA) or complete stainless steel (THT-100TS)
  • Three rotor section turnstiles include fully welded middle-barrier to prevent unauthorized entry through midsection of turnstile gate
  • Double gate can have up to four control points, two entries and two exits
  • Each rotor can be supplied with electrical operation in one or two directions
  • Any combination of fail-lock or fail-safe is available on electric versions: all fail-lock applications automatically include a mechanical key release to allow manual override in an emergency

THT-100T (Tandem): Aluminum or Stainless Steel Spec Sheets
(P)  Product Data sheet

(P)  Cut Sheet
(Z)  Architectural Drawing
(D)  Specification
(P)  Wiring Diagram
(P)  Installation instructions


THT-100 (4)

  • Four-wing turnstile gate provides security for sensitive areas where piggybacking and material removal are serious concerns
  • 90-degree entry area reduces available passage space
  • Rugged construction ensures long life and trouble-free performance
  • Mechanism can be mechanical or self-centering and electrically operated. A second set of electrical controls can be added for exit
  • Any combination of fail-lock or fail-safe is available on electric versions: all fail-lock applications automatically include a mechanical key release to allow manual override in an emergency
  • Fabricated from hot-dipped galvanized steel (THT-100C4, EC4), powder coated steel (THT-100CP4, ECP4), anodized aluminum with stainless steel arms (THT-100A4, EA4) or complete stainless steel (THT-100S4, ES4)
  • Bottom thrust bearing is dust and moisture proof
  • Low voltage 24 VDC operating system requires normally open, momentary, dry contact to release turnstile gate

THT-100 (4) Spec Sheets
(P)  Product Data sheet

(P)  Cut Sheet
(Z)  Architectural Drawing
(D)  Specification
(P)  Wiring Diagram (THT-100HGEC, HGECP and HGES only)
(P)  Installation instructions

- THT-100ASTG
  • Fabricated from heavy gauge anodized aluminum
  • Available in several color schemes to provide cost efficient and aesthetic access control to any facility
  • Three rotor section design provides comfortable passage space while maintaining high security performance
  • Mechanism can be one- or two-way electrically controlled with any combination of fail-lock or fail-safe operation: all fail-lock applications automatically include a mechanical key release to allow manual override in an emergency
  • Low voltage 24 VDC operating system requires a normally open, momentary dry contact to release the turnstile.

THT-100ASTG Spec Sheets
(P)  Product Data sheet

(P)  Cut Sheet
(Z)  Architectural Drawing
(D)  Specification
(P)  Wiring Diagram
(P)  Installation instructions

THT-100ASTG Series

The highly attractive and versatile THT-100ASTG Series turnstiles are designed for many years of reliable service. Fabricated from heavy gauge anodized aluminum, the turnstiles are designed with extruded arms and clear panel shields.

THT-100ASTG Series Spec Sheets
(P)  Full Height Turnstiles brochure


THT-100ASTGDS (Dual Shield)

  • Fabricated from heavy gauge anodized aluminum
  • Available in several color schemes to provide cost efficient and aesthetic access control to any facility
  • Turnstile has shields on both sides for enhanced appearance
  • Three rotor section design provides comfortable passage space while maintaining high security performance
  • Mechanism can be one- or two-way electrically controlled with any combination of fail-lock or fail-safe operation: all fail-lock applications automatically include a mechanical key release to allow manual override in an emergency
  • Low voltage 24 VDC operating system requires a normally open, momentary dry contact to release the turnstile

THT-100ASTGDS (Dual Shield) Spec Sheets
(P)  Product Data sheet
(P)  Cut Sheet
(Z)  Architectural Drawing
(D)  Specification
(P)  Wiring Diagram
(P)  Installation instructions


THT-100TASTG (Tandem)

  • Combines the functions of two single rotor turnstiles into one turnstile
  • Intermeshing of left and right-hand rotors allows reduction in overall width from 10 feet (two single rotor turnstiles) to 8 feet with a space saving double gate, with no reduction of passage space
  • Fabricated from heavy gauge anodized aluminum
  • Available in several color schemes to provide cost efficient and aesthetic access control to any facility
  • Three rotor section design provides comfortable passage space while maintaining high security performance
  • Mechanism can be one- or two-way electrically controlled with any combination of fail-lock or fail-safe operation: all fail-lock applications automatically include a mechanical key release to allow manual override in an emergency
  • A low voltage 24 VDC operating system requires a normally open, momentary dry contact to release the turnstile
  • THT-100TASTG (Tandem) Spec Sheets
    (P)  Product Data sheet
    (P)  Cut Sheet
    (Z)  Architectural Drawing
    (D)  Specification
    (P)  Wiring Diagram
    (P)  Installation instructions


    THT-100ASTGMD (Metal Detection)

    • Enhanced full height turnstile to meet specific security applications where the safety and security of metal detection is required
    • Fully integrated system combines aesthetic appeal with real control for installations demanding accurate and efficient monitoring of persons carrying metal objects
    • Electrically controlled in one or both directions; Available in any combination of fail-lock or fail-safe on electric versions; All fail-lock applications automatically include a mechanical key release to allow manual override in an emergency
    • Capable of interfacing with any type of card reader access or biometric system
    • Especially well suited to airports, schools, courthouses, prisons and military bases
    • Equipped with two key-operated modes of operation:
      1. The first allows authorized users free passage through turnstile unless a metal object is detected. When notified by the integrated metal detector, the turnstile locks and bars passage until the violation is resolved by security personnel.
      2. The second mode integrates an access control system into the turnstile that only allows one authorized user at a time to enter. If an alarm condition occurs, the access control reader is shunted and the turnstile remains locked, barring entry until the violation is investigated and cleared.
    • THT-100ASTGMD combines metal detection with the THT-100ASTGDS (dual shield) anodized aluminum turnstile

    THT-100ASTGMD (Metal Detection) Spec Sheets
    (P)  Product Data sheet
    (P)  Cut Sheet
    (Z)  Architectural Drawing
    (D)  Specification

    - THT-100 Transparent



    The Transparent Series offers the ideal solution for applications requiring structural integrity and impenetrability along with aesthetic appeal. The clear, see-through design achieves a clean, finished look.

    THT-100 Transparent Series Spec Sheets
    (P)  Full Height Turnstiles brochure

    THT-100EL

    • Designed to provide high security access control while maintaining aesthetic appeal
    • Fabricated from anodized aluminum construction with 1-1/4"x 3" clear polycarbonate arms: curved shield assembly uses 5/16" curved acrylic
    • Full stainless steel square ceiling canopy provides a clean, finished look
    • Heavy-duty, low voltage 24 VDC electromechanical operating mechanism is self-centering and cushioned by a hydraulic, adjustable shock absorber
    • Available in clear anodized aluminum (standard), stainless steel, bronze, brass or powder coated steel
    • Standard configuration is 3 rotor sections, 120 degrees apart; Also available with 4 rotor sections, 90 degrees apart
    • Normally open, momentary dry contact is required to release turnstile
    • Available in any combination of fail-lock or fail-safe on electric versions: all fail-lock applications automatically include a mechanical key release to allow manual override in an emergency

    THT-100EL Spec Sheets
    (P)  Product Data sheet

    (P)  Cut Sheet
    (Z)  Architectural Drawing
    (W)  Specification
    (P)  Wiring Diagram
    (P)  Installation instructions


    THT-100TL

    • Clear polycarbonate arms and curved acrylic shield assembly provide aesthetic appeal while maintaining the functions of a dual rotor turnstile
    • Heavy-duty construction ensures durability and trouble-free operation
    • Full stainless steel rectangular ceiling canopy provides a clean, finished look
    • 1-1/4" x 3" arms provide clear, see-through effect while maintaining structural integrity and impenetrability; Available in 84" or 96" width
    • Standard construction is clear anodized aluminum: other finishes include color anodized aluminum, stainless steel, powder coated steel, bronze or brass
    • Include stainless steel middle barrier to prevent unauthorized entry through midsection of turnstile
    • Double gate can have up to 4 control points, two entries and two exits
    • Available in any combination of fail-lock or fail-safe on electric versions: all fail-lock applications automatically include a mechanical key release to allow manual override in an emergency

    THT-100TL Spec Sheets
    (P)  Product Data sheet

    (P)  Cut Sheet
    (Z)  Architectural Drawing
    (W)  Specification
    (P)  Wiring Diagram
    (P)  Installation instructions


    THT-100CSTG

    • Provides a unique aesthetic appeal to high security access control applications
    • Fabricated from anodized aluminum with three large, clear polycarbonate panels per rotor section
    • Shield assembly uses clear panels to enhance aesthetic appeal
    • Optional full stainless steel square ceiling canopy provides a clean, finished look
    • Heavy duty, low voltage 24 VDC electromechanical operating mechanism is self centering and cushioned by a hydraulic, adjustable shock absorber
    • Standard configuration is 3 rotor sections, 120 degrees apart; Also available with 4 rotor sections, 90 degrees apart
    • Normally open, momentary dry contact is required to release the turnstile
    • Available in any combination of fail-lock or fail-safe on electric versions: all fail-lock applications automatically include a mechanical key release to allow manual override in an emergency

    THT-100CSTG Spec Sheets
    (P)  Product Data sheet

    (P)  Cut Sheet
    (Z)  Architectural Drawing
    (W)  Specification
    (P)  Wiring Diagram
    (P)  Installation instructions

    - THT-100MT Mantrap



    The THT-100MT Mantrap turnstile offers the highest level of security through a unique two-stage entry process. The turnstile's design ensures access is restricted only to authorized users.

    • Enhanced full height security turnstile specifically designed for very high security applications requiring positive identification through a biometric device
    • Unique two-stage entry process with independent controls for each stage
      1. Initial stage requires user to present a valid form of identification to rotate the turnstile 90-degrees and gain access to the second quadrant
      2. Next, a separate, usually biometric, device verifies the individual’s identity before allowing the final 90-degrees of rotation and access to the secure area
    • Independent electrical controls prevent unauthorized users from gaining entry by presenting a non-identity card to the first access control device at both stages of the entry process
    • Electrically controlled exiting through traditional access or biometric control devices also is available
    • Fabricated from satin polished stainless steel to be a heavy-duty security turnstile capable of restricting access only to identified, authorized users
    • Available in any combination of fail-lock or fail-safe on electric versions: all fail-lock applications automatically include a mechanical key release to allow manual override in an emergency

    THT-100MT Mantrap Spec Sheets
    (P)  Product Data sheet

    (P)  Cut Sheet
    (Z)  Architectural Drawing
    (W)  Specification


    Access Gates & Barriers
    - Waist High Gates



    Waist High ADA Access Gates

    Simple handicap and parcel delivery passageway

    Providing controlled access alongside your turnstile, the waist high ADA Access Gate creates a simple handicap and parcel delivery passageway.

    Waist High ADA Access Gates Spec Sheets
    (P)  Waist High Turnstiles brochure


    Waist High ADA Access Gates / Winglock 900

    • Offers stylish indoor security access control
    • Space efficient barrier constructed from a single frameless tempered glass door wing and a slim column
    • Glass and stainless steel transparent design can match many surroundings without creating an obtrusive barrier
    • Winglock 900 design matches the Transpalock 900 turnstile and can provide convenient access for wheelchairs and persons with oversized objects or carts

    Waist High ADA Access Gates / Winglock 900 Spec Sheets
    (P)  Product data sheet
    (P)  Cut Sheet
    (W)  Specification


    Waist High ADA Access Gates / THG-42E

    • Available as a one-way, 90-degree swing, or a two-way, 180-degree swing, self-closing handicap gate
    • Designed to be used with an access control system, generally in conjunction with waist-high access control turnstiles
    • Gate is electrically operated (THG-42ES) by a 24 VDC doorstrike or magnetic lock; also available mechanically controlled (THG-42MS) via a key operated lock
    • Closing is achieved by a floor-mounted hydraulic closer unit which is sub-floor mounted; above floor closer also is available as an option
    • Construction is a 2" square stainless steel framework, polished to a #4 satin finish and a 1/4" Lexan® filler panel with universal handicap logo; gate dimensions and operational specifications meet ADA requirements
    • Clear opening of 32" can be adjusted as necessary
    • Overall height of 38" matches waist-high turnstiles and can vary as needed
    • Available materials include powder coated steel, bronze, brass or #8 mirror finish stainless steel

    Waist High ADA Access Gates / THG-42E Spec Sheets
    (P)  Product Data Sheet
    (P)  Cut Sheet
    (Z)  Architectural Drawing
    (W)  Specification
    (P)  Wiring Diagram
    (P)  Installation Instructions

    - Full Height Gates



    Full Height ADA Access Gates

    To accompany your full security turnstile, the ADA Access Full Height Gate is designed to provide handicap access control for those unable to utilize the turnstile.

    Full Height ADA Access Gates Spec Sheets
    (P)  Waist High Turnstiles brochure


    Full Height ADA Access Gates / THG-51E

    • Designed to provide handicap access into installations using full security turnstiles and access control
    • Electrically operated by a 24 VDC doorstrike or magnetic lock and can be self-closing via a transom mounted overhead close
    • Construction is a 2" square buck with interior door panel frame fabricated from 2" square tubing with round horizontal members; Due to the general close proximity to full height turnstiles, construction materials usually match the turnstiles
    • Fabricated from hot-dipped galvanized steel (THG-51EC), powder coated steel (THG-51ECP), anodized aluminum with stainless steel arms (THG-51EA) or complete stainless steel (THG-51ES)
    • Gate height of 86" matches turnstiles
    • Clear opening of 34" exceeds minimum ADA requirements
    • Gate swing is 90 degrees with gate panel attached to the buck via a continuous stainless steel hinge
    • Final width and height can be customized for industrial applications

    Full Height ADA Access Gates / THG-51E Spec Sheets
    (P)  Product Data Sheet
    (P)  Cut Sheet
    (Z)  Architectural Drawing
    (W)  Specification
    (P)  Wiring Diagram
    (P)  Installation Instructions


    Full Height ADA Access Gates / THG-51EL

    • Provides handicap access into installations using full security turnstiles and access control
    • Gate is electrically operated by a 24 VDC doorstrike or magnetic lock and can be self-closing via a transom mounted overhead closer
    • Construction is a 2" square buck with the interior door panel frame fabricated from 2" square tubing with round horizontal members; Due to the general close proximity to full height turnstiles, construction materials usually match the turnstiles
    • Lexan® gates use a full 3/8" thick panel instead of horizontal bars
    • Gate height of 86" matches turnstiles
    • Clear opening of 34" exceeds minimum ADA requirements
    • Gate swing is 90 degrees with gate panel attached to the buck via a continuous stainless steel hinge
    • Final width and height can be customized for industrial applications

    Full Height ADA Access Gates / THG-51EL Spec Sheets
    (P)  Product Data Sheet
    (P)  Cut Sheet
    (Z)  Architectural Drawing
    (W)  Specification
    (P)  Wiring Diagram
    (P)  Installation Instructions
